Sapphire Windows
Product Information :
Sapphire material has high hardness (Moths 9) so it’s very scratch resistant, has high melting point (2050 °C) and good thermal stability, sapphire is also corrosion-resistant and has a high transmission rate in the infrared spectrum. Thusly sapphire is the best window material for Hi-Power lasers, mid and multi-spectrum range. Utilization in satellite control panel monitors, sensor system on fire control, thermal and shaking environmental testing, and aerospace technologies is common.

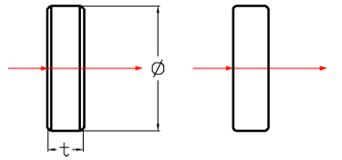

Specifications

Material

Optical grade sapphire

Diameter

Φ≥2.0mm ≤250mm

Diameter tolerance

±0.05 mm

Thickness

≥0.1mm

Thickness tolerance

±0.02mm

Wedge Angle

≤10 arc sec

Surface Accuracy

λ/4 per Φ25.4mm

Surface Quality

10/5
